 ( for CPAP Machine sleep apnea are different from Oxygen concentrators if you are looking for CPAP machines please click here           This page is for Medical Oxygen & Respiratory

All prices are correct on this web page.               NAPPI code shall be provided

Oxygen Concentrators ( Generator ), Portable Concentrators, Portable Oxygen machine, Conservers, Regulators, Pulse OXIMETER & Analyzers



 Oxygen Concentrators

Oxygen concentrators are electrically-operated devices that concentrate the oxygen content of normal room air to approximately 90% at flow rates up to 5 l/min. Concentrators are convenient, cost-effective, do not require refills and are aesthetically attractive. Of all the delivery systems used by oxygen-dependent patients, oxygen concentrators are the most common and usually the most economical method to provide oxygen therapy at home.

An oxygen concentrator uses sieve-bed technology to extract oxygen from the surrounding air. This oxygen is then delivered to the patient using a plastic tube connected to a nasal cannula or face mask. The advantages of a concentrator over other forms of oxygen supply are:

Concentrators provide a continuous supply of oxygen, while requiring very low maintenance

The concentrator stays in the room in which it is placed and the person using the device can use a longer length of oxygen tubing (15 m of tubing is provided free of charge) to move around the house without having to move the concentrator

A concentrator can be combined with a medical oxygen cylinder as a backup in case of power outages

Concentrators are highly cost-efficient.

Because concentrators operate solely on electricity, it is critical that they are always supplied with a backup cylinder to ensure uninterrupted oxygen supply, even during power failure.





            We do not give address over the phone you must print direction by clicking this link

    e-mail: icmsa@telkomsa.net             Special price 19 Aug 2017

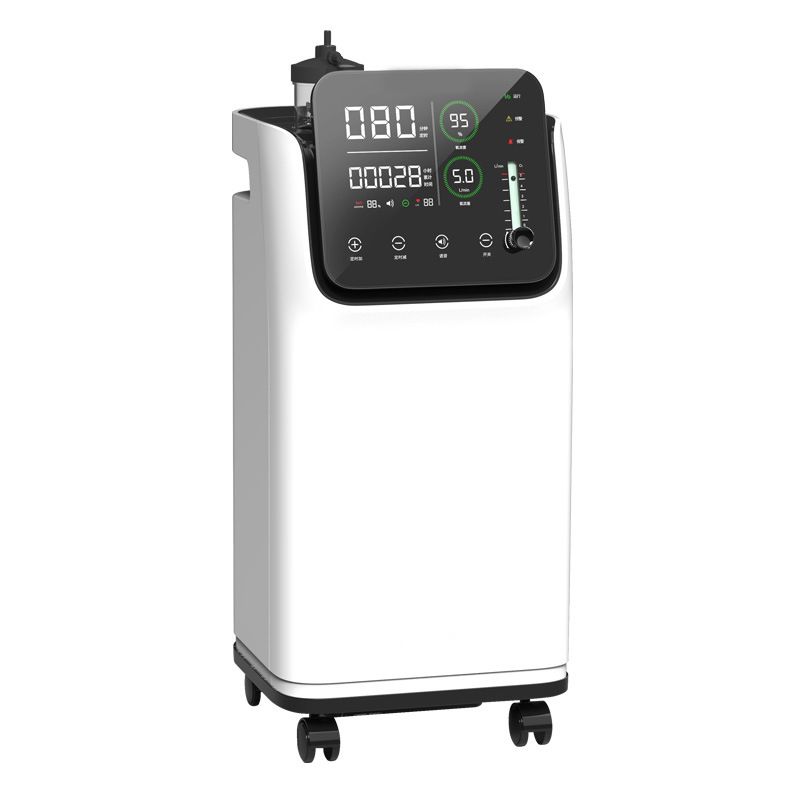

 5 , 8 & 10 litre /Min Oxygen concentrator                Specifications:


        (Single flow)


    For industrial high pressure oxygen filling machine click    here

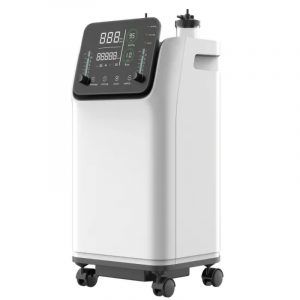

Oxygen Concentrator 10 L  R22,000+ Paediatric (Neonatal) R1000=R 23,000   incl VAT  ITEM.OC10P
 OC-5   Price: 5 litre/min R 11,445    incl VAT  NAPPI code: 120810- 001

 OC-8  Price: 8 litre/min R 18,495    incl VAT  NAPPI code: 120813- 001

 OC-10  Price: 10 litre/min R 19,995    incl VAT  NAPPI code: 120813- 001

Practice no: 090 001 0465542

Rated power        480W
Operation voltage  AC220V   50Hz
Oxygen flow   0-5 L/min           0-10L/min
Oxygen Concentration  93%±3%
Outlet pressure  0.04-0.07Mpa
 Alarm Power failure; low & high pressure; temperature; low purity (optional) ; maintenance (optional)
Sound Level  ≤50dB
LCD display Accumulating timing; present timing; Timing
Large LCD display (optional) Pressure digital; accumulating timing; present timing; presetting timing temperature digital;  Optional:SPO2 digital; maintenance reminding;
Electrical category  Class II Type B
Net weight  27-32 Kg
 Dimension  365*375*600mm
Atomization particle
       (optional)
 ≤5μ reaches 90% only for atomization type
 Low purity alarm
     (optional) +R895

When oxygen purity≥85%,the green lamp is on,
When oxygen purity is between 85% and 73%,yellow lamp is on,
When oxygen purity is <73%,red lamp is on, indicating low purity

 Pulse oximeter
    (optional)
Pulse oximeter will be installed to oxygen concentrator to monitor SPO2 on site


Hospital 20 Litres Oxygen concentrator   ICMO 20

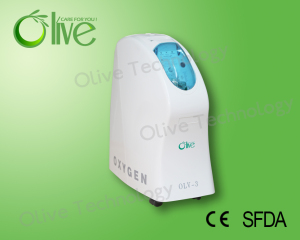

Portable Oxygen concentrator

Very important: Please do not ask any info about this machine till you have one of above machines at home and tell us what litre per minute you set the machine.

Price: R 24,295  incl VAT  Item no. OC3PB

incl carry bag and trolley.



Portable with battery and cigarette lighter plug

1. Oxygen density: 30%-90%

2. Power Consumption: 90W

3. Operation voltage: AC220V/110V±10;50/60Hz±1

4. Sound level:  ≤40dB (A)

5. Output pressure: 20kPa ~ 60kPa

6. Total weight: 5.4kg



Standard Features

1. Advanced PSA technology;

2. LED display the total working hours;

3.  Intelligent Self Diagnosis System;

4. Quotation includes: Bag, Lithium Battery & AC / Car Adaptor



Advanced Features

1.Portable design with battery and for car

2.Small size & light weight.

3.Intelligent diagnosis system;

4.High efficient filters keep away most impurity and bacteria.

5.Suit only for out of the house operation.

6.Heat balance system ensure longer life span.

7.Easy to operation. One switch control/Remote control.

ICMO3-Portable Continuous  oxygen concentrator

This one is not designed to use batteries alone or you can use it with car size battery.

Price: R 9,995  incl VAT  Item no. OC3P

Inverter that you can install in your car for this item R995. If you one with battery only choice is the bottom item.



1.It is portable oxygen concentrator with PSA technology.
2. It can be run by vehicle DC12V, only if you use Inverter
but inverter and battery not provided.
Technical Parameter:
1. Model No.: JAY-5P
2. Oxygen Flow (L/min) : 1-3
3. Oxygen Concentration (%) : 90~30
4. Oxygen Pressure (MPa): 0.03~0.07
5. Noise (dBA) : ≤45
6. Dimension (mm): 310×320×85
7. N.W. (Kg): 6Kgs
8. Rated Power (W) :≤75
9. Power Supply (V) : AC220V/110V


Only the two bellow items can be used with batteries.





If you do not print the Direction to our office you shall have difficulty finding us.

The following machines can only be used a few hours a day and can not replace big machines.

Before we give you quotation should inform us that you have already a big machine at home. Also we need to know how many litres per minutes oxygen you are using at present.

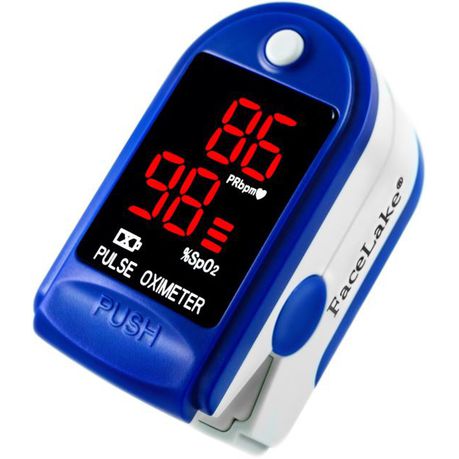

Pulse Oximeter (JAX-204)     FINGERTIP PULSE OXIMETER: Price:  R 945    incl VAT  Item no. OXI meter

CE and FDA approval Fingertip oximeter(JAX-204)

Features
Can be used in: Hospital, home, community medical treatment, sports healthcare, etc.
Can measure SpO2 and PR accurately
Low Battery voltage indication
Display mode: LED display
Power supply: Two 1.5V(AAA size) alkaline battery
Low power consumption; Shut off automatically when no signal
Small volume(57(L)x31(W)x32(H)mm)
Light, convenient to carry
Various colour of cover can be selected
    Order form, Proforma invoice

If you want claim it back from Medical aid we can supply you NAPPI code and you can use your doctor practice no.

Courier delivery by to any address in South Africa

icmsa@telkomsa.net       If you do not print the Direction to our office you shall have difficulty finding us.



CPAP Machine

Our prices is much less than our competitions because we make our profit mainly from healthy people.

Recommended natural health site:      www.cure.co.za

What Is COPD?

COPD, or chronic obstructive pulmonary (PULL-mun-ary) disease, is a progressive disease that makes it hard to breathe. "Progressive" means the disease gets worse over time.

COPD can cause coughing that produces large amounts of mucus (a slimy substance), wheezing, shortness of breath, chest tightness, and other symptoms.

Cigarette smoking is the leading cause of COPD. Most people who have COPD smoke or used to smoke. Long-term exposure to other lung irritants, such as air pollution, chemical fumes, or dust, also may contribute to COPD.

Overview

To understand COPD, it helps to understand how the lungs work. The air that you breathe goes down your windpipe into tubes in your lungs called bronchial tubes or airways.

Within the lungs, your bronchial tubes branch into thousands of smaller, thinner tubes called bronchioles. These tubes end in bunches of tiny round air sacs called alveoli (al-VEE-uhl-eye).

Small blood vessels called capillaries run through the walls of the air sacs. When air reaches the air sacs, the oxygen in the air passes through the air sac walls into the blood in the capillaries. At the same time, carbon dioxide (a waste gas) moves from the capillaries into the air sacs. This process is called gas exchange.

The airways and air sacs are elastic (stretchy). When you breathe in, each air sac fills up with air like a small balloon. When you breathe out, the air sacs deflate and the air goes out.

In COPD, less air flows in and out of the airways because of one or more of the following:

  • The airways and air sacs lose their elastic quality.
  • The walls between many of the air sacs are destroyed.
  • The walls of the airways become thick and inflamed.
  • The airways make more mucus than usual, which tends to clog them.

Normal Lungs and Lungs With COPD

Figure A shows the location of the lungs and airways in the body. The inset image shows a detailed cross-section of the bronchioles and alveoli. Figure B shows lungs damaged by COPD. The inset image shows a detailed cross-section of the damaged bronchioles and alveolar walls.

Figure A shows the location of the lungs and airways in the body. The inset image shows a detailed cross-section of the bronchioles and alveoli. Figure B shows lungs damaged by COPD. The inset image shows a detailed cross-section of the damaged bronchioles and alveolar walls.

In the United States, the term "COPD" includes two main conditions—emphysema (em-fi-SE-ma) and chronic bronchitis (bron-KI-tis). (Note: The Diseases and Conditions Index article about bronchitis discusses both acute and chronic bronchitis.)

In emphysema, the walls between many of the air sacs are damaged, causing them to lose their shape and become floppy. This damage also can destroy the walls of the air sacs, leading to fewer and larger air sacs instead of many tiny ones. If this happens, the amount of gas exchange in the lungs is reduced.

In chronic bronchitis, the lining of the airways is constantly irritated and inflamed. This causes the lining to thicken. Lots of thick mucus forms in the airways, making it hard to breathe.

Most people who have COPD have both emphysema and chronic obstructive bronchitis. Thus, the general term "COPD" is more accurate.

Outlook

COPD is a major cause of disability, and it's the fourth leading cause of death in the United States. More than 12 million people are currently diagnosed with COPD. Many more people may have the disease and not even know it.

COPD develops slowly. Symptoms often worsen over time and can limit your ability to do routine activities. Severe COPD may prevent you from doing even basic activities like walking, cooking, or taking care of yourself.

Most of the time, COPD is diagnosed in middle-aged or older people. The disease isn't passed from person to person—you can't catch it from someone else.

COPD has no cure yet, and doctors don't know how to reverse the damage to the airways and lungs. However, treatments and lifestyle changes can help you feel better, stay more active, and slow the progress of the disease.
