DC Solar Deep Well Water Pump
Choosing the right size pumps is very technical and needs experience. We do not accept customers choosing the size.
You may find slightly cheaper quotes – you may lose the whole purchase and installation expenses.
For the right size please email icm@lantic.net the following info:
- Minimum water you need per day (not per hour).
- Depth of borehole and static water level.
If you need more than 7000 litres per day we will ask your maximum budget as well, because many emails come from customers with limited budgets who want lots of water.
Without answering these questions we do not send any quotation. Please do not get upset – there are dealers that operate like a grocery shop.
Please note:
✔ As soon as the head is double, cost gets double.
✔ As soon as the volume gets double, cost gets double.
✔ By adding panels, capacity does not increase – controller box burns (expensive).
⚙️ The ICJS3" Solar pumps – fully automatic with water level control
MPPT and DSP chip technique
Motor filled with oil
Max head: 165m
Application area:
Used mainly in dry regions for agriculture irrigation.
Can be used for drinking water and living water, fountains.
Material of parts:
Outlet: stainless steel · Pump body: stainless steel · Motor body: stainless steel
Screw: stainless steel · Bearing: NSK (Japan)
Accessories:
Pump controller, screw, cable connector, water level sensor, cable for solar panel, rope.
Please ask us to choose the right size. If you increase panels to get more water, control box can get damaged and is expensive.
ICJS3-60 180W Solar Pump + box, complete with min 250W panel:
R11,445 Incl VAT
ICJS3-80 210W Solar Pump + box, complete with min 300W panel:
R15,000 Incl VAT
ICJS3-100 450W Solar Pump + box, complete with min 620W panel:
R19,995 Incl VAT
ICJS3-120 540W Solar Pump + box, complete with min 750W panel:
R20,125 Incl VAT
It uses much thicker wire than 220V pumps. If you connect wrong voltage to the control box, it costs R950 to repair the control box.

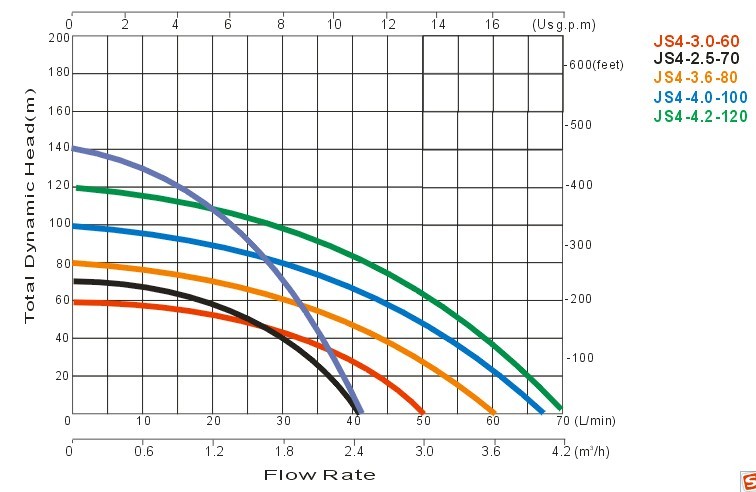

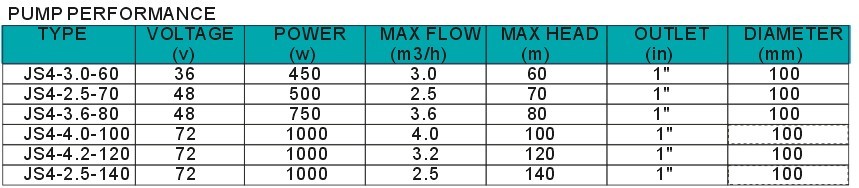

💧 The ICJS4" Solar pumps – fully automatic with water level control
ICJS4-80 or ICJS4-100 or ICJS4-120 Solar Pump 1000W and box – Complete with min 1445W solar panel Price: R38,000 incl VAT
ICJS4-140 Solar Pump 1000W and box – Complete with min 1445W solar panel Price: R38,995 incl VAT
For bigger size you can use Solar inverters that gives 3 phase AC 380 volts out and you can use normal 3 phase borehole pumps.
Extra Controller boxes: R2800+VAT no warranty (it burns again if voltage of your panels are not right).

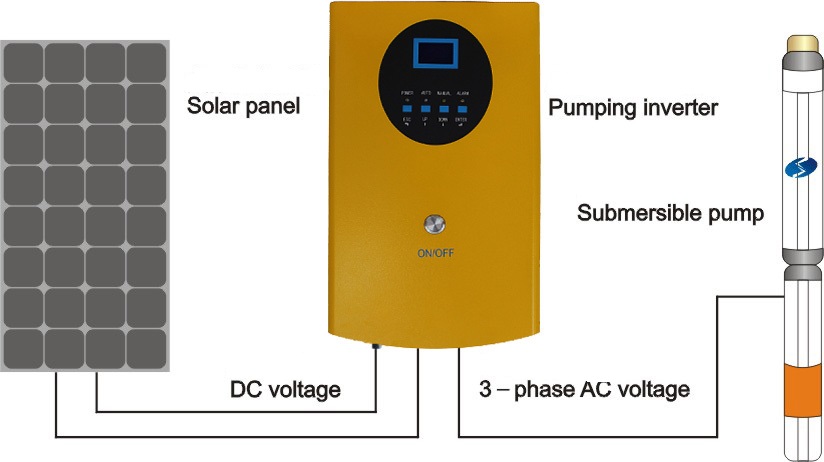

🔌 3‑Phase Solar Inverter & Pump Systems (380V AC)
It is very important that you connect right voltage and watt otherwise inverter gets damaged.
ICSGY750H Solar inverter 220/380 volts – 0.75KW pump motor + 1200W Solar panel Total: R33,400 Excl VAT
ICSGY1100H Solar inverter 220/380 volts – 1.1KW pump motor + 1750W Solar panel Total: R36,950 Excl VAT
ICSGY1500H Solar inverter 3 phase AC380V – 1.5KW pump motor + 2300W Solar panel Total: R45,945 Excl VAT
ICSGY2200H Solar inverter 3 phase AC380V – 2.2KW pump motor + 3500W Solar panel Total: R60,525 Excl VAT
ICSGY4000H Solar inverter (R17,945) – 4KW pump motor (R10,395) + 5800W Solar panel Total: R95,995 +VAT
ICSGY5700H Solar inverter (R18,945) – 5.7KW pump motor (R12,995) + 8800W Solar panel Total: R125,445 Excl VAT
| Feature set |
1. Off grid solar inverter for 3 phase AC water pump 2. With Soft start, VFD, MPPT 3. High efficiency >98% 4. GPRS function (optional) 5. LCD display 6. Stainless steel, waterproof shell with IP65 7. Without battery and solar charge controller 8. Provide 1 year warranty |
|---|---|
| Detailed benefits |
✔ Adopting dynamic VI maximum power point tracking (MPPT) + optimized SPWM, fast response. ✔ IPM (intelligent power module) electronic design, transformerless, conversion efficiency 98%. ✔ AC drive function for small solar pump inverter (optional – connect to city power at night). ✔ Built‑in GPRS receiving module (optional) – remote control via PC or mobile. ✔ Adjustable speed range based on system conditions. ✔ Setting parameters and fault detection through LCD display (43×29mm). ✔ Patented low voltage boost device to reduce solar panel cost. ✔ Working environment: -10 to 60°C. ✔ Stainless steel, waterproof shell with cooling fan. ✔ System protections: Dry Well, Over Flow, Output Overload, Low/Over Input Voltage, Over Temperature, Lighting, Reverse Polarity. ✔ No starting box required. ✔ Water storage instead of battery power storage – no battery needed. |
Direction: On Google Map you can search for ICM Industries and drive here.
