 Wind Generator 1000 Watts
e-mail: icm@lantic.net
Interesting web site:
www.christreturn.net |
![]() |
![]()

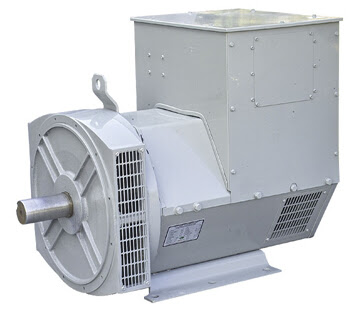

| STC Series (three phase
A.C. SYNCHRONOUS Alternator with AVR) For making
Generators. |
We also exporting to Swaziland, Botswana,
Zambia, Namibia
, Zimbabwe,
Namibia Mozambique Our Products are especially
popular in Cape Town. Johannesburg and Pretoria
In South
Africa |
|
|
 |
| |
 |
Copper winding
One
year warrantee |
|
New Arrival: Permanent magnet Alternators
with Rare earth Magnets.
Efficiency is 20% better than normal
Alternators.
The engine KW
must be 30% to 60% more than Alternator
chosen.
We do not have
stock of the other sizes alternator other
than ones mentioned on the table
Under the following
environment, the generator could run
continuously:
1. Altitude: not exceed 1000m.
2. Ambient temperature: -15℃~40℃
3.Relative air humidity: not exceed 90%.
All 1500 R.P.M
Quotes are valid 15 Days.
e mail:
icm@lantic.net
|
TFW type
 |
TECHNICAL DATA Direction:
On Google Map you can search for
ICM Industries
and drive here.
Double bearing
Alternator use pulley to
connect to engine.
1- Stamford copy
PMG ( Rare earth Permanent magnet).
This means you save over
20% on fuel cost. Brushless double bearing
only. With Voltage
regulator. The physical
size of these alternators is about double size of normal ones.
Special price 19 April 2021
For Sale
|
TYPE
|
Output
(kW) |
Output
(KVA) |
Current
(A) |
220 or 380
Volts |
Price excl VAT |
stock |
|
STCPM-22
1500RPM |
22 |
27 |
57 |
380/220 V |
R
28,995 |
0 |
|
STCPM-30 |
30 |
37 |
78 |
380/220 V |
R
32,995 |
1 |
|
STCPM-68 |
68 |
80 |
179 |
380/220 V |
R 44,000 |
1 |
|
STCPM-96 |
96 |
110 |
250 |
380/220 V |
R 54,000 |
2 |
|
STCPM-144 |
144 |
160 |
375 |
380/220 V |
R 65,495 |
1 |
|
STCPM-10 250RPMsee
below table low speed |
10 |
12 |
26 |
This one is
different. |
R 37,000 |
2 |
Manufacturing
Standards
GB755, Third part of BS
5000,VDE 0530, NEMA MG1-22,IEC34,CSA
C22.2-100 and ASB59
.jpg) |
Rare earth magnet Alternators
We are prepare to buy back permanent magnet generators at 25%
less purchasing price within 2 months time if not used much.
Direction:
On Google Map you can search for
ICM Industries
and drive here.
OVERALL AND MOUNTING
DIMENSION

Volt , Hz, Amp meter box
with sensors Included in
Magnetic Alternators. |
Variable motor speed control 2.2 KW
220 Volts
R2500+VAT
Variable motor speed control 15 KW
380 Volts
R9000+VAT
Special price 19 April 2021
we
have only these sizes in stock.
2- normal Alternators in stock.
|
TYPE
With Voltage
regulator |
Output
(kW) |
Output
(KVA) |
Current
(A) |
220 or 380
Volts |
Single bearing
Price excl VAT |
Double Bearing
Price excl VAT |
In
stock |
|
ST-6 |
6.4 |
8 |
24 |
220 V |
|
R13,745 |
4 |
|
ST-9 |
9 |
12 |
40 |
220 V |
|
R14,945 |
3 |
|
STC-20 |
20 |
25 |
|
380/220 V |
|
R19,000 |
1 |
|
TFW-56 Brushless |
50 |
56 |
130 |
220/380V |
R28,545 |
|
1 |
|
TFW-70
Brushless |
60 |
75 |
150 |
220/380V |
R31,545 |
|
2 |
|
Variable
Motor speed Controls
Vector
AC Drive
Variable motor speed control 2.2 KW 220 Volts R2495+VAT
Variable motor
speed control 15 KW 380 Volts R8995+VAT
For more specification pleases click on the photo.
|
 |
|
Permanent Magnet Electric Motor
|
(kW) |
(KVA) |
Volts |
Double Bearing
Price excl VAT
these are
not cheap because of rear
earth magnet and durability |
In
stock |
| PMEM 4.8 |
4 |
5 |
380 V |
R
14,500 |
5 |
| PMEM
8 |
8 |
10 |
380V |
R 19,995 |
5 |
| PMEM
12 |
12 |
15 |
380V |
R
28,495 |
2 |
We can supply
some other sizes of Single bearing brush
less Alternators about these prices.
 |
Some customers ask us about
torque to use for designing of
the free energy Generators.
We do not know much about
this subject. we sell only
alternators with one year
warrantee. |
Type
|
Output
|
Installing dimensions
(This does not mean we have
stock of all) |
External dimensions |
Weight
(kg) |
|
kW |
KVA |
A |
B |
C |
D |
E |
F |
G |
H |
K |
a |
b |
h1 |
h |
L1 |
L2 |
g |
STC-5
|
5 |
6.3 |
254 |
254 |
108 |
φ38 |
80 |
12 |
33 |
160 |
16 |
50 |
310 |
25 |
450 |
580 |
325 |
41 |
120 |
|
STC-7.5 |
7.5 |
9.4 |
254 |
254 |
108 |
φ38 |
80 |
12 |
33 |
160 |
16 |
50 |
310 |
25 |
580 |
580 |
325 |
41 |
130 |
STC-10
|
10 |
12.5 |
279 |
203 |
121 |
φ42 |
110 |
12 |
37 |
180 |
16 |
60 |
339 |
25 |
590 |
610 |
365 |
45 |
140 |
|
STC-12 |
12 |
15 |
279 |
203 |
121 |
φ42 |
110 |
12 |
37 |
180 |
16 |
60 |
339 |
25 |
490 |
610 |
365 |
45 |
155 |
|
STC-15 |
15 |
18.8 |
318 |
228 |
133 |
φ48 |
110 |
14 |
45 |
200 |
20 |
60 |
378 |
30 |
500 |
660 |
400 |
51.5 |
192 |
|
STC-20 |
20 |
25 |
318 |
228 |
133 |
φ48 |
110 |
14 |
45 |
200 |
20 |
60 |
378 |
30 |
500 |
660 |
400 |
51.5 |
202 |
|
STC-30 |
30 |
37.5 |
356 |
286 |
149 |
φ60 |
140 |
18 |
53 |
225 |
20 |
65 |
421 |
32 |
650 |
770 |
452 |
64 |
257 |
|
STC-40 |
40 |
50 |
356 |
286 |
149 |
φ60 |
140 |
18 |
53 |
225 |
20 |
65 |
421 |
32 |
650 |
770 |
452 |
64 |
290 |
|
STC-50 |
50 |
62.5 |
356 |
311 |
149 |
φ60 |
140 |
18 |
53 |
225 |
20 |
65 |
421 |
32 |
650 |
810 |
452 |
64 |
344 |
Change over
switches with wall mount box
|
|
TECHNICAL DATA:
|
Model |
Power (KW) |
Current (A) |
Voltage (V) |
Power Factor (cos) |
Number of poles |
Speed(r.p.m) |
|
In series |
And the United |
In series |
And the United |
|
ST-12 |
12 |
52.2 |
104 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-15 |
15 |
65.3 |
130 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-20 |
20 |
87 |
174 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-24 |
24 |
104 |
208 |
230 |
115 |
1.0 |
4 |
1500 |
|
|
Direction: On Google Map you
can search for ICM Industries
and drive here.
|
| Contact
Details |
|
![]() |
|
![]()
ICM
Industries
e-mail: icm@lantic.net
Established
1999
7 of 73
Capital Hill commercial park Midrand South Africa
|
ICM Industries
VAT reg no:4290184649
Midrand South Africa
">
For orders over 3 items you can ask for some discount.
Tel: 060 610 7549 If busy please retry in 5 minutes.
